Aluminum Cradle Boat Lifts
Full specifications for each cradle lift model
10,000 lb aluminum cradle lift
12,500 lb aluminum cradle lift
16,000 lb 4–6 Post aluminum cradle lift
20,000 lb 8 Post aluminum cradle lift
At Universal Boat Lifts, we understand the importance of keeping your boat safe and functioning in salt environments. That's why we've engineered our boat lifts to require minimal maintenance while still providing maximum durability and strength. Our lifts are constructed of 6061-T6 marine grade aluminum, which means that they are built to withstand heavy saltwater exposure without rusting or deteriorating over time. Trust our expertise to provide you with a boat lift solution you can rely on.
A closer look will show you some of the reasons the boat lift requires very little maintenance.
Operating and maintenance instructions are provided with each lift and also located under support documents in case yours is misplaced.
Adjustable piling mounts
Stainless steel fasteners
Weatherproof switches
Machined cable winders
Lifetime bearings
Front and back covers
All cradle lift end plates are thru bolted with stainless steel nylocks and designed to use the strength of entire beam rather than just the top flange.
Our Aluminum Bunkboards are covered with UV protected vinyl and are adjustable to perfectly fit the contour of your boat.
Gear Plates
AMS Flat Plate Drives have withstood the test of time and have been used on lifts for decades. It features galvanized steel or aluminum backing plates, bronze worm gear, and a large 12" cast-iron bull gear. When properly installed and used within their rated torque limits, our flat plates have been known to last decades with only simple maintenance.
The E-Gear was developed and introduced by Aqua Marine Supply in the early 2000's. It was the first of its kind for the boat lift industry. The E-Gear takes the maintenance out of the equation with a double reduction gear set that is fully enclosed in a cast-aluminum housing. When properly applied and inspected, the E-Gear will get the job done with virtually no maintenance required.
Cradle Lift Gallery

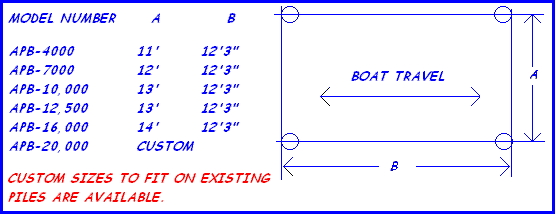

Piling Diagram
Specifications
Model | Top Beam | Bottom Beam | Stainless Cable | Drive Pipe | Galvanized Flat Plate Winches | Flat Plate Winch Motor | Aluminum Bunks | Guide Poles | Piling |
|---|---|---|---|---|---|---|---|---|---|
4,000 lb | (2) 5" x 12'6" Channel | I-Beam 5" x 11' | 1/4" x 19', single pull | 1 1/2" sch 40 w/ 2" cable winders | (2) 3,000 lb, 7" pulley, 34.8 in/min | 3/4 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 8" x 12' | 2" x 7' | (4) 8" diameter |
7,000 lb | (2) 6" x 12'6" Channel | I-Beam 6" x 12' | 5/16" x 19', single pull | 1 1/2" sch 40 w/ 2" cable winders | (2) 4,000 lb, 10" pulley, 26.8 in/min | 3/4 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 8" x 12' | 2" x 7' | (4) 8" diameter |
10,000 lb | (2) 6" x 12'6" Channel | I-Beam 8" x 13' | 5/16" x 33', double pull | 1 1/2" sch 40 w/ 2" cable winders | (2) 3,000 lb, 7" pulley, 17.4 in/min | 3/4 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 8" x 12' | 2" x 10' | (4) 8" diameter |
12,500 lb | (2) 7" x 12'6" Channel | I-Beam 8" HD x 13' | 5/16" x 33', double pull | 1 1/2" sch 40 w/ 2" cable winders | (2) 4,000 lb, 10" pulley, 13.4 in/min | 1 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 8" x 12' | 2" x 10' | (4) 8" diameter |
16,000 lb 4–6 Post | (2) 7" x 12'6" Channel | I-Beam 10" x 14' | 5/16" x 33', double pull | 1 1/2" sch 80 w/ 2" cable winders | (2) 6,500 lb, 11" twin pulley, 12.5 in/min | 1 hp HD TENV, 115/230 V, 13.6/6.8 A | 3" x 10" x 14' | 2" x 10' | (6) 8" diameter |
20,000 lb 8 Post | (4) 6" x 5' Channel | I-Beam 10" HD x 15' | 5/16" x 48', triple pull | 1 1/2" sch 80 w/ 2" cable winders | (4) 3,000 lb, 7" pulley, 11.6 in/min | 3/4 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 10" x 16' | 2" x 10' | (8) 8" diameter |
20,000 lb 6 Post | (2) 8" x 14'6" Channel | I-Beam 10" HD x 15' | 5/16" x 48', triple pull | 1 1/2" sch 80 w/ 2" cable winders | (2) 6,500 lb, 11" twin pulley, 8.4 in/min | 1 hp HD TENV, 115/230 V, 13.6/6.8 A | 3" x 10" x 16' | 2" x 10' | (6) 8" diameter |
24,000 lb 8 Post | (4) 7" x 5' Channel | I-Beam 12" HD x 15' | 5/16" x 48', triple pull | 1 1/2" sch 80 w/ 2" cable winders | (4) 4,000 lb, 7" pulley, 11.6 in/min | 1 hp TENV, 115/230 V, 12.2/6.1 A | 3" x 10" x 16' HD | 2" x 10' | (8) 8" diameter |
